Domination
A team holds the prop's input for a few seconds to claim it, and scores every tick while it keeps it. The other team can take it over at any time.
Pre-alpha · phase 2 software done, phase 3 started · not field-ready yet
The open force-on-force platform
Atalaia is an open platform for the electronic props of airsoft, paintball and milsim: the boxes teams capture, the bombs they arm and defuse. Build a domination box from a €20 microcontroller (a tiny, cheap computer board), turn an old Android phone into a hacking terminal, run a 20-box weekend milsim on a LoRa mesh (long-range, low-power radio that the boxes relay to one another across the field), and write your own game modes as small scripts. Every game runs on the field itself: no cloud or internet needed, and no manufacturer can lock you in.
Atalaia (ah-tah-LYE-ah) is Portuguese for watchtower: a lookout on a hill that watched for trouble and passed the warning along. Why that name?
How a game works
Playing needs no technical knowledge. This is how a game will run once the boxes are built (phases 1 and 2); the simulator already plays the same modes on a computer today.
Set up
The organisers place the boxes around the field and pick a game mode, such as Domination, on a box's keypad or from a phone, in under a minute.
Capture
To take a box, a team holds its colour's button for a few seconds. The box lights up in that colour and scores for the team until the other side takes it back.
Relay
Each box reports by radio to the field controller, a small computer at the base; boxes far away are relayed by the ones in between. A box that loses contact keeps playing and catches up later.
Score
The controller adds it all up. The organisers follow the game live on their phones, and the field can show the score on a big screen or on a stream.
Why Atalaia
Electronic props add a lot to a game, but commercial systems keep the rules locked inside closed firmware. New modes wait on the vendor, there is no public API, and you cannot add your own hardware. Atalaia does it differently.
Local-first
Every game runs on the field itself, fully offline, from a single house to a multi-kilometre forest. The internet is optional.
Any hardware
Cheap ESP32 boards, credit-card-sized Raspberry Pi computers, simple Arduino-class boards and new or repurposed Android phones all play in the same game.
Modes are scripts
Game modes are short Lua scripts, small text files of rules, with a settings file. Change or share one without reflashing (reinstalling) the boxes' built-in software.
Open protocol and API
Props talk over Skirmesh-RF, a documented radio protocol, so anyone can build a device that joins in. The field controller offers MQTT, REST and WebSocket APIs for scoreboards, stream overlays and other tools.
Built for fields

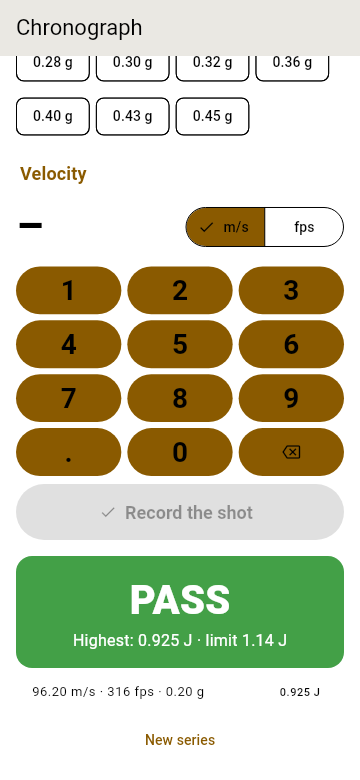

Player roles, squads, custom scenarios, and a chrono registry that keeps each replica's readings for spot checks are part of the design.
Copyleft
Fields that charge entry and makers who sell boxes are welcome. Anyone who ships or hosts a changed version shares the changes back.
How it fits together
In plain words: the props on the field talk by radio to the field controller, a small computer at the base that runs the game and keeps the score. Phones connect to it over Wi-Fi, and scoreboards, stream overlays and map apps such as ATAK through its API. An optional site server on the internet keeps accounts and history. The controller, its API and the organisers' console are built and tested on a computer, not yet on the field; the site server comes in a later phase.
- Site server (optional): accounts, history and the player app, over the internet.
- Field controller on a Raspberry Pi or Android: GM and player apps join over Wi-Fi; scoreboards and ATAK use MQTT, REST and webhooks.
- Props on the Skirmesh-RF LoRa mesh: ESP32 Field Boxes and satellites, Android props with an ESP32 pod, and Arduino-class thin nodes.
Under the hood, every device that runs game modes uses the same shared core, written in C11, and the same Lua modes; only a thin layer for each kind of hardware differs. A mode written once plays the same on a box, a phone or a Raspberry Pi.
How the radio works
The props talk over LoRa, a long-range, low-power radio, in Atalaia's own protocol, Skirmesh-RF. Two diagrams show what LoRa can and cannot do on a field, and how one protocol runs on very different devices. None of it has been on a real field yet.
Game modes
Modes react to intent ("a team is claiming this prop"), not to hardware, so the same script runs on a Field Box, a keypad box or an Android phone. Seven modes, one modifier and the Medic Kit are written and tested in software today; none has run on a real field yet.
Bomb / Rush
Attackers arm the bomb, then defend it; defenders must defuse it before the fuse runs out. Arm and defuse by holding a button, or give each team its own keypad code.
Kill Confirmed
Players carry signed NFC tags. A team scans the tags it collected at a station: an enemy's tag confirms the kill, a teammate's denies it. Forged tags are refused.
What it looks like
Eight captures from the real Field Box firmware (ESP32, LVGL 9.2, 320 × 240 TFT) running in the Wokwi emulator. The box UI is in English. Not yet tested on physical hardware.
The build manual has the full wiring diagram and first-flash guide for the Heltec WiFi LoRa 32 V4.

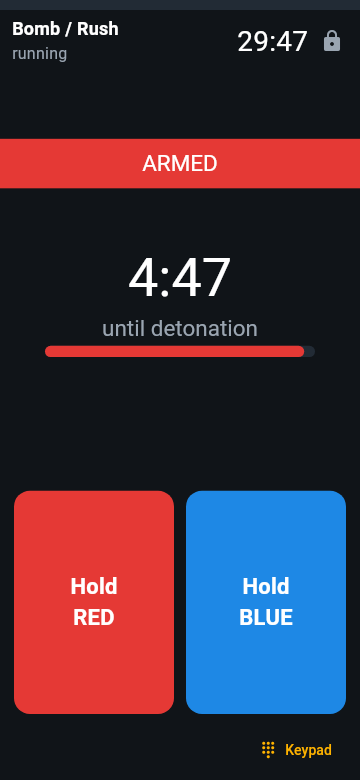

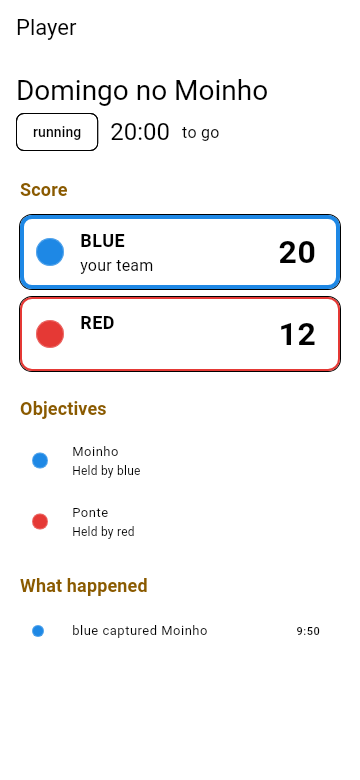

The Android app
The app draws the same mode screens from the same YAML files. These are the app's test images, not photos of a phone: nothing has run on a real phone yet.
Try it today
There is nothing to flash yet, but the shared core runs on a computer. The simulator plays a mode in your browser: hold team buttons, watch each prop's screen and follow the event log. The commands below are typed in a terminal.
With a C compiler
cmake -S core -B build -DATALAIA_SHARED=ON
cmake --build build
cd simulator
python -m atalaia_sim serve ../modes/bombWith Docker only
cd simulator
python ../tools/docker_sim.py serve ../modes/bombThen open http://localhost:8000. You need Python 3.10+ with PyYAML. The simulator guide has every option.
Roadmap
Six phases. Each one ends with a real field test before the next begins.
- Done
0 · Foundations
Shared core, Lua sandbox, Skirmesh-RF codec and browser simulator. Gate met.
- Software done
1 · Single box
Field Box firmware running in an emulator and a build manual; waiting for the first boxes.
- In progress
2 · Field network
Skirmesh-RF over LoRa, field controller, API, GM console and a mode pack, tested in software; waiting for the radio boards.
3 · Android and players
Android props, the I/O pod, the player app and the modes that need phones; much of it done in software.
4 · Site server and advanced play
Site server, custom scenarios, advanced modes, ATAK.
5 · Community
Visual mode editor, mode registry, carrier PCB, translations, build guides.
Community hub
Fields, teams and builders will meet here. Everything is opt-in: the hub holds only what people choose to publish, and game data stays on each field's own servers.
- Open
Discussion
Questions, ideas, reviews of the design and event reports. Go to Discussions
- Planned
Build gallery
Photos, bills of materials, enclosure files and wiring notes for each build, starting with the first Field Box prototypes.
- Planned
Field and team directory
An opt-in list of fields and teams that use Atalaia, with region, site type and a contact link.
- Planned
Mode and scenario browser
The mode registry, with descriptions, downloads and community ratings.
- Later
Usage statistics
Opt-in, anonymous totals of versions, platforms and modes played. Off by default.
- Later
Hosted site servers
For clubs without IT support, at cost, with every club's data separate and exportable.
Get involved
Atalaia is built by players, field owners and makers. You can help today by:
- reviewing the design specification and opening issues;
- proposing game modes with the game mode idea template;
- sharing how your field plays, so the defaults fit real games;
- writing code: start with CONTRIBUTING.md.
Every commit carries a Signed-off-by line, and the project is strictly clean-room, written from scratch: no code, firmware, manuals, sounds or images from any commercial product.
The name
An atalaia is a watchtower: a lookout post on a hill or a stretch of coast. The word came into Portuguese from the Arabic aṭ-ṭalāʾiʿ, "the scouts", and estar de atalaia still means "to be on the lookout".
A field controller sees every prop on the field and tells the GM the moment something changes. Watchtowers were local-first too, and ran the original low-bandwidth mesh: smoke by day, fire by night, relayed from tower to tower. Skirmesh-RF follows the same rules with LoRa.
Field safety
Atalaia props are game equipment. Make them look like game props: bright colours, clear "GAME PROP" labels, and nothing resembling a real explosive device. Transport them in labelled cases, never leave them unattended outside the field, and treat lithium batteries with care.
